ISO 9624 Flange

ISO 9624 PN16 LAP JOINT FLANGE



PN16 Loose Flange Zinc / Galvanizing Coated











Flange Dimensions & Approximate Masses / Flange Weight

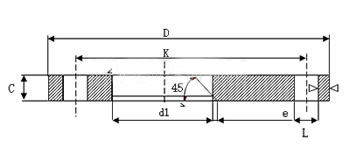

ISO9624 PN16 LAP JOINT FLANGE DIMENSIONS

DN

D

d1

K

C

L

BOLT

NB

e

kg

40/50

150

62

110

16

18

M16

4

3

1.71

50/63

165

78

125

16

18

M16

4

3

1.96

65/75

185

92

145

16

18

M16

4

3

2.41

80/90

200

108

160

18

18

M16

8

3

2.86

100/110

220

128

180

18

18

M16

8

4

3.27

100/125

220

135

180

18

18

M16

8

4

3.06

125/125

250

135

210

18

18

M16

8

4

4.63

125/140

250

158

210

18

18

M16

8

4

3.88

150/160

285

178

240

18

22

M20

8

4

5.07

150/180

285

188

240

18

22

M20

8

4

4.66

200/200

340

235

295

26

22

M20

12

4

8.75

200/225

340

238

295

26

22

M20

12

4

8.52

250/250

405

288

355

29

26

M24

12

4

13.05

250/280

405

294

355

29

26

M24

12

4

12.42

300/315

460

338

410

32

26

M24

12

5

17.61

350/355

520

376

470

35

26

M24

16

5

25.51

400/400

580

430

525

38

30

M27

16

5

32.12

500/500

715

533

650

46

33

M30

20

7

58.24

600/630

840

645

770

55

36

M33

20

8

89.40

700/710

910

740

840

63

36

M33

24

8

96.87



NOTE:
1. Any special request for flanges thickness or inner dimension, please indicate when make an inquiry.
2. This flange usually coated cold zinc / galvanizing and used for pipes connecting.





Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80") for Plate Flange, Forged Flange.

2.

Flange Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105, SS400, Q235.

3.

Flange Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flange Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Flange Monthly Output: 3000 tons per Month.

6.

Flange Delivery Terms: CIF, CFR, FOB, EXW, transport by sea, by air, by express DHL, FedEx, TNT, EMS etc.

7.

Flange Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Flange Minimum Order Quantity (MOQ): 1Ton or 100Pcs per size.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
