TYPE 02 Flange

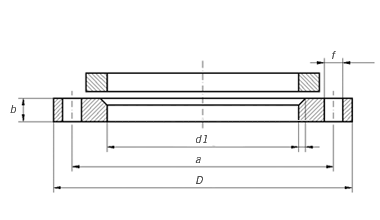

EN 1092-1 TYPE 02 LOOSE FLANGE



PN6, PN10, PN16, LAPPED FLANGE










Flange Dimensions & Approximate Masses


EN 1092-1 TYPE 02 PN10 LOOSE FLANGE

Rated Diameter

Flange

Screws

Weight
(7,85 Kg/dm3)

d1

k

D

b

e

d2

Thread

Bolt holes

KG

15

25

65

95

14

3

14

M12

4

0,654

20

31

75

105

16

4

14

M12

4

0,913

25

38

85

115

16

4

14

M12

4

1,081

32

47

100

140

18

5

18

M16

4

1,781

40

53

110

150

18

5

18

M16

4

2,035

50

65

125

165

20

5

18

M16

8

2,520

65

81

145

185

20

6

18

M16

8

3,050

80

94

160

200

20

6

18

M16

8

3,480

100

120

180

220

22

6

18

M16

8

4,200

125

145

210

250

22

6

18

M16

8

5,210

150

174

240

285

24

6

22

M20

8

6,890

200

226

295

340

24

6

22

M20

8

8.870

250

281

350

395

26

8

22

M20

12

11,200

300

333

400

445

26

8

22

M20

12

12,800

350

365

460

505

30

8

22

M20

16

19,400

400

416

515

565

32

8

26

M24

16

26,400

450

467

565

615

36

8

26

M24

20

32,200

500

519

620

670

38

8

26

M24

20

38,500

600

622

725

780

42

8

30

M27

20

52,200

700

721

840

895

50

8

30

M27

24

79,400

800

824

950

1015

56

8

33

M30

24

112,000

900

926

1050

1115

62

8

33

M30

28

135,000

1000

1028

1160

1230

70

8

36

M33

28

180,000

1. SURFACE FINISH FACING TYPES A, B1, B2 etc

2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN6 / P245GH / HEAT NUMBER

EN 1092-1 TYPE 02 PN16 LOOSE FLANGE

Rated Diameter

Flange

Screws

Weight
(7,85 Kg/dm3)

d1

k

D

b

e

d2

Thread

Bolt holes

KG

15

25

65

95

14

3

14

M12

4

0,655

20

31

75

105

16

4

14

M12

4

0,913

25

38

85

115

16

4

14

M12

4

1,081

32

47

100

140

18

5

18

M16

4

1,781

40

53

110

150

18

5

18

M16

4

2,035

50

65

125

165

20

5

18

M16

4

2,668

65

81

145

185

20

6

18

M16

4

3,241

80

94

160

200

20

6

18

M16

8

3,512

100

120

180

220

22

6

18

M16

8

4,247

125

145

210

250

22

6

18

M16

8

5,258

150

174

240

285

24

6

22

M20

8

6,945

200

226

295

340

26

6

22

M20

12

9,383

250

281

355

405

29

8

26

M24

12

13,717

300

333

410

460

32

8

26

M24

12

18,213

350

365

470

520

35

8

26

M24

16

27,184

400

416

525

580

38

8

30

M27

16

34,789

450

467

585

640

42

8

30

M27

20

44,793

500

519

650

715

46

8

33

M30

20

62,227

600

622

770

840

55

8

36

M33

20

98,983

700

721

840

910

63

8

36

M33

24

107,32

800

824

950

1025

74

8

39

M36

24

152,44

900

926

1050

1125

82

8

39

M36

28

184,25

1000

1030

1170

1255

90

8

42

M39

28

257,09

1. SURFACE FINISH FACING TYPES A, B1, B2 etc

2. FLANGE MARKING: LOGO EN 1092-1 / 02 / DN100 / PN16 / P245GH / HEAT NUMBER




Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: P235GH, P245GH, P250GH, RST37.2, C22.8, S235JR, ST37, ASTM A105

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
