Threaded Flange

DIN 2565 PN6 / DIN 2566 PN16 THREADED FLANGE



SCREWED FLANGE

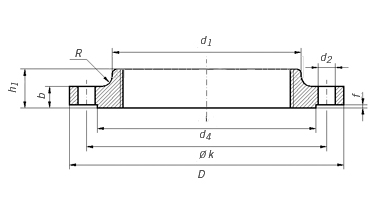

Flange Dimensions & Approximate Masses


DIN 2565 PN 6 THREADED FLANGE SPECIFICATION

Rated
Diameter



Flange

Neck

Raised face

Screws

Weight
(7,85 Kg/dm3)

d1

Thread

D

b

k

h1

d3

d4

f

Holes

Thread

d2

Kg

15

21,3

R 1/2

80

12

55

20

30

40

2

4

M 10

11

0,373

20

26,9

R 3/4

90

14

65

24

40

50

2

4

M 10

11

0,59

25

33,7

R 1

100

14

75

24

50

60

2

4

M 10

11

0,743

32

42,4

R 1 1/4

120

14

90

26

60

70

2

4

M 12

14

1,05

40

48,3

R 1 1/2

130

14

100

26

70

80

3

4

M 12

14

1,2

50

60,3

R 2

140

14

110

28

80

90

3

4

M 12

14

1,37

65

76,1

R 2 1/2

160

14

130

32

100

110

3

4

M 12

14

1,92

80

88,9

R 3

190

16

150

34

110

128

3

4

M 16

18

2,82

100

114,3

R 4

210

16

170

38

130

148

3

4

M 16

18

3,19

125

139,7

R 5

240

18

200

40

160

178

3

8

M 16

18

4,47

150

165,1

R 6

265

18

225

44

185

202

3

8

M 16

18

5,3


DIN 2566 PN16 THREADED FLANGE SPECIFICATION

Rated
Diameter



Flange

Neck

Raised face

Screws

Weight
(7,85 Kg/dm3)

d1

Thread

D

b

k

h1

d3

d4

f

Holes

Thread

d2

Kg

15

21,3

R 1/2

95

14

65

20

35

45

2

4

M 12

14

0,613

20

26,9

R 3/4

105

16

75

24

45

58

2

4

M 12

14

0,91

25

33,7

R 1

115

16

85

24

52

68

2

4

M 12

14

1,1

32

42,4

R 1 1/4

140

16

100

26

60

78

2

4

M 16

18

1,6

40

48,3

R 1 1/2

150

16

110

26

70

88

3

4

M 16

18

1,78

50

60,3

R 2

165

18

125

28

85

102

3

4

M 16

18

2,43

65

76,1

R 2 1/2

185

18

145

32

105

122

3

4

M 16

18

3,18

80

88,9

R 3

200

20

160

34

118

138

3

8

M 16

18

4,12

100

114,3

R 4

220

20

180

38

140

158

3

8

M 16

18

4,47

125

139,7

R 5

250

22

210

40

168

188

3

8

M 16

18

6,13

150

165,1

R 6

285

22

240

44

195

212

3

8

M 20

22

7,92


NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696




Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.
