Blind Flange

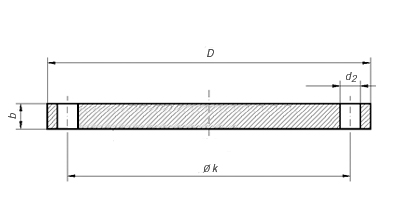

DIN 2527 BLIND FLANGE



PN6, PN10, PN16, PN25, PN40










Flange Dimensions & Approximate Masses


Germany standard flange DIN 2527 Blind flange Nominal Pressure 6 to 100

Blindflansche Nenndruck 6 bis 100

Brides plaines, pressions nominales 6 à 100

DIN 2527 PN6 BLIND FLANGE

Rated
Diameter

Flange

Screws

Weight
(7,85 Kg/dm3)

D

b

k

Number

Thread

d2

Shape B

Kg

15

80

12

55

4

M 10

11

0.44

20

90

14

65

0.66

25

100

14

75

0.83

32

120

14

90

M 12

14

1.18

40

130

14

100

1.39

50

140

14

110

1.63

65

160

14

130

2.15

80

190

16

150

M 16

18

3.44

100

210

16

170

4.22

125

240

18

200

8

6.11

150

265

18

225

7.51

200

320

20

280

12.31

250

375

22

335

12

18.54

300

440

22

395

M 20

22

25.46

350

490

22

445

31.77

400

540

22

495

16

38.49

500

645

24

600

20

60.10


DIN 2527 PN10 BLIND FLANGE

Rated
Diameter

Flange

Screws

Weight
(7,85 Kg/dm3)

D

b

k

Number

Thread

d2

Shape B

Kg

15

95

14

65

4

M 12

14

0,72

20

105

16

75

1,01

25

115

16

85

1,23

32

140

16

100

M 16

18

1,8

40

150

16

110

2,09

50

165

18

125

2,88

65

185

18

145

3,66

80

200

20

160

4,77

100

220

20

180

8

5,65

125

250

22

210

8,42

150

285

22

240

M 20

22

10,4

200

340

24

295

16,5

250

395

26

350

12

24

300

445

26

400

30,9

350

505

26

460

16

40,6

400

565

26

515

M 24

26

49,4

500

670

28

620

20

75


DIN 2527 PN16 BLIND FLANGE

Rated
Diameter

Flange

Screws

Weight
(7,85 Kg/dm3)

D

b

k

Number

Thread

d2

Shape B

Kg

15

95

14

65

4

M 12

14

0,72

20

105

16

75

1,01

25

115

16

85

1,23

32

140

16

100

M 16

18

1,8

40

150

16

110

2,09

50

165

18

125

2,88

65

185

18

145

3,66

80

200

20

160

8

4,77

100

220

20

180

5,65

125

250

22

210

8,42

150

285

22

240

M 20

22

10,4

200

340

24

295

12

16,1

250

405

26

355

M 24

26

24,9

300

460

28

410

35,1

350

520

30

470

16

47,8

400

580

32

525

M 27

30

63,5

500

715

36

650

20

M 30

33

102


NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696




Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
