CLASS F RING FLANGE

AWWA C207 CLASS F RING FLANGE



300 Psi

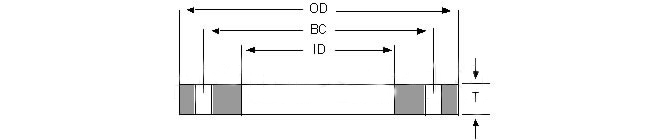

Flange Dimensions & Approximate Masses



Nom Size



OD

Thickness



Bore

Drilling

Weight

Slip-On

Blind

Bolt Circle

Hole Dia

No. Holes

Slip-on

Blind

A

T

T

B

C









4

10.00

1.130

1.130

4.57

7.88

0.875

8

18

25

5

11.00

1.210

1.210

5.66

9.25

0.875

8

22

33

6

12.50

1.310

1.310

6.73

10.62

0.875

12

30

46

8

15.00

1.310

1.310

8.73

13.00

1.000

12

40

66

10

17.50

1.500

1.500

10.88

15.25

1.125

16

56

102

12

20.50

1.630

1.630

12.88

17.75

1.250

16

83

152

14

23.00

1.940

1.940

14.19

20.25

1.250

20

128

228

16

25.50

2.140

2.140

16.19

22.50

1.375

20

167

310

18

28.00

2.250

2.250

18.19

24.75

1.375

24

204

392

20

30.50

2.330

2.330

20.19

27.00

1.375

24

247

482

22

33.00

2.500

2.500

22.19

29.25

1.375

24

307

606

24

36.00

2.690

2.690

24.19

32.00

1.625

24

388

776

26

38.25

3.000

3.000

26.19

34.50

1.875

28

451

977

28

40.75

3.130

3.130

28.19

37.00

1.875

28

532

1156

30

43.00

3.150

3.166

30.19

39.25

1.875

28

586

1303

32

45.25

3.250

3.332

32.19

41.50

1.875

28

657

1518

34

47.50

3.380

3.475

34.19

43.50

1.875

28

741

1745

36

50.00

3.460

3.671

36.19

46.00

2.125

32

802

2042

38

52.25

3.500

3.815

38.19

48.00

2.125

32

874

2317

40

54.25

3.630

3.982

40.19

50.25

2.125

36

937

2608

42

57.00

3.810

4.171

42.19

52.75

2.125

36

1103

3015

44

59.25

4.000

4.338

44.19

55.00

2.125

36

1237

3388

46

61.50

4.130

4.505

46.19

57.25

2.125

40

1344

3791

48

65.00

4.500

4.781

48.19

60.75

2.125

40

1718

4494



Dimensions are in inches.  Weights are in pounds.

Note:  *Pressure rating at atmospheric temperature is 300 psi.  These flanges have the same OD and drilling as ANSI/ASME B16.1 class 250 cast-iron pipe and flanged fittings.





Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB, Q235B, 20#, 20Mn etc.

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
