Lapped/Loose Flange

UNI 6089 PN10 LAPPED FLANGE



LOOSE FLANGE










Flange Dimensions & Approximate Masses


ITALY STANDARD UNI 6089 PN10 LAPPED FLANGE DIMENSIONS TABLE

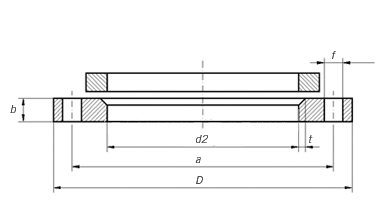

Directions for the designation

Lapped flanges

Sscrews

Weight

Rated
Diameter

External diameter
of the pipe

a

b

D

d2

f

t

Holes

Flange

25

30

85

16

115

33

14

4

4

M12

1,11

33,7

37

1,08

32

38

100

16

140

41

18

4

4

M 16

1,63

42,4

46

1,58

40

44,5

110

16

150

48

18

4

4

M 16

1,85

48,3

52

1,81

50

57

125

16

165

62

18

4

4

M 16

2,16

60,3

64

2,14

65

76,1

145

16

185

80

18

4

4

M 16

2,60

80

88,9

160

18

200

94

18

5

8**

M 16

3,14

100

108

180

18

220

113

18

5

8

M 16

3,63

114,3

119

3,47

125

133

210

18

250

138

18

5

8

M 16

4,49

139,7

145

4,26

150

159

240

18

285

164

22

5

8

M 20

5,54

168,3

174

5,16

175

193,7

270

20

315

200

22

5

8

M 20

6,76

200

219,1

295

20

340

225

22

5

8

M 20

7,46

250

267

350

22

395

273

22

5

12

M 20

10,2

273

279

9,73

300

323,9

400

26

445

330

22

5

12

M 20

13,2

350

355,6

460

28

505

362

22

5

16

M 20

19,9

368

374

18,4

400

406,4

515

32

565

413

25

6

16

M 22

27,2

419

426

25,0

450

457,2

565

34

615

464

25

6

20

M 22

31,3

500

508

620

38

670

515

25

6

20

M 22

39,9

600

609,6

725

44

780

618

30

6

20

M 27

56,3

700

711,2

840

50

895

721

30

6

24

M 27

79,7

800

812,8

950

56

1015

824

33

6

24

M 30

112

*

 The weight is approximate and calculated on base 7.85 Kg/dm3

**

 For PN10 the flange should have 4 holes




Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, C21, P235GH, P245GH, P250GH, ASTM A105

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
