Backing Ring Flange
- Home
- >
- Flange Size
- >
- Backing Ring Flange
| ||||||
|
|

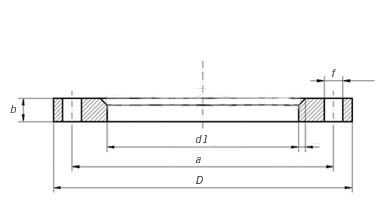

Flange Dimensions & Approximate Masses |
SABS 1123 T1000/3 BACKING RING FLANGE WITH HOT DIPPED GALVANIZED FOR HDPE PIPE | ||||||||
Pipe OD | ID | OD | Thickness | PCD | No Holes | Hole ID | Weight | Radius |
mm | mm | mm | mm | mm |
| mm | KG | mm |
40 |
| 140 | 10 | 100 | 4 | 18 |
|
|
50 |
| 150 | 10 | 110 | 4 | 18 |
|
|
63 |
| 165 | 12 | 125 | 4 | 18 |
|
|
75 |
| 185 | 12 | 145 | 4 | 18 |
|
|
90 |
| 200 | 12 | 160 | 8 | 18 |
|
|
110 |
| 220 | 12 | 180 | 8 | 18 |
|
|
125 |
| 220 | 12 | 180 | 8 | 18 |
|
|
140 |
| 250 | 14 | 210 | 8 | 18 |
|
|
160 |
| 285 | 16 | 240 | 8 | 22 |
|
|
180 |
| 285 | 16 | 240 | 8 | 22 |
|
|
200 |
| 340 | 18 | 295 | 8 | 22 |
|
|
225 |
| 340 | 18 | 295 | 8 | 22 |
|
|
250 |
| 395 | 18 | 350 | 12 | 22 |
|
|
280 |
| 395 | 20 | 350 | 12 | 22 |
|
|
315 |
| 445 | 22 | 400 | 12 | 22 |
|
|
355 |
| 505 | 25 | 460 | 16 | 22 |
|
|
400 |
| 565 | 25 | 515 | 16 | 26 |
|
|
450 |
| 615 | 30 | 565 | 20 | 26 |
|
|
500 |
| 670 | 30 | 620 | 20 | 26 |
|
|
560 |
| 730 | 35 | 675 | 20 | 26 |
|
|
630 |
| 835 | 36 | 780 | 20 | 26 |
|
|
BS T/D BACKING RING FLANGE WITH HOT DIPPD GALVANIZED FOR HDPE PIPE | ||||||||
Pipe OD | ID | OD | Thickness | PCD | No Holes | Hole ID | Weight | Radius |
mm | mm | mm | mm | mm |
| mm | KG | mm |
40 |
| 120 | 6 | 87.3 | 4 | 14 |
|
|
50 |
| 133.4 | 6 | 98.4 | 4 | 14 |
|
|
63 |
| 152.4 | 8 | 114.3 | 4 | 18 |
|
|
75 |
| 165.1 | 8 | 127 | 4 | 18 |
|
|
90 |
| 184.1 | 10 | 146 | 4 | 18 |
|
|
110 |
| 215.9 | 10 | 177.8 | 4 | 18 |
|
|
125 |
| 215.9 | 10 | 177.8 | 4 | 18 |
|
|
125 PVC |
| 250 | 13 | 209.6 | 8 | 18 |
|
|
140 |
| 250 | 13 | 209.6 | 8 | 18 |
|
|
160 |
| 279.4 | 13 | 235 | 8 | 18 |
|
|
180 |
| 279.4 | 13 | 235 | 8 | 18 |
|
|
200 |
| 336.6 | 13 | 292.1 | 8 | 18 |
|
|
225 |
| 336.6 | 13 | 292.1 | 8 | 18 |
|
|
250 |
| 406.4 | 16 | 355.6 | 8 | 22 |
|
|
280 |
| 406.4 | 16 | 355.6 | 8 | 22 |
|
|
315 |
| 457.2 | 20 | 406.4 | 12 | 22 |
|
|
355 |
| 527.1 | 22 | 469.9 | 12 | 26 |
|
|
400 |
| 577.9 | 22 | 520.7 | 12 | 26 |
|
|
450 |
| 641.4 | 25 | 584.2 | 12 | 26 |
|
|
500 |
| 705 | 29 | 641.4 | 16 | 26 |
|
|
560 |
| 825.5 | 30 | 755.7 | 16 | 26 |
|
|
630 |
| 825.5 | 32 | 755.7 | 16 | 26 |
|
|
| |
Production Capacity & Purchase Details. | |
|
|
1. | Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange. |
2. | Material Carbon Steel: ASTM A105, S235JR, C22.8, RST37.2, MILD STEEL |
3. | Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc. |
4. | Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc. |
5. | Monthly Output: 3000 tons per Month. |
6. | Delivery Terms: CIF, CFR, FOB, EXW. |
7. | Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc. |
8. | Minimum Order Quantity: 1Ton or 100Pcs. |
9. | Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service. |
10. | Find More Requirements In Flanges Market. |
