Plate Flange

UNI 2276 PN6 PLATE FLANGE

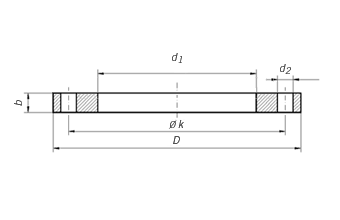

SLIP ON PLATE










Flange Dimensions & Approximate Masses


ITALY STANDARD UNI 2276 PN6 PLATE FLANGE DIMENSIONS TABLE

Directions for the designation

d1

a

b

D

f

Holes

Screws

Weight*
Kg

Rated
Diameter

External diameter
of the pipe

Nominal

Tolerance

15

20

20,5

+0,5

55

10

80

11

4

M 10

0,34

21,3

22

0,33

20

25

25,5

65

12

90

11

4

M 10

0,51

26,9

27,5

0,50

25

30

30,5

75

12

100

11

4

M 10

0,63

33,7

34

0,61

32

38

38,5

90

14

120

14

4

M 12

1,09

42,4

43

1,05

40

44,5

45

100

14

130

14

4

M 12

1,26

48,3

49

1,23

50

57

58

110

14

140

14

4

M 12

1,38

60,3

61,5

1,35

65

76,1

77

130

14

160

14

4

M 12

1,68

80

88,9

90

150

16

190

18

4

M 16

2,63

100

108

109

+1,0

170

16

210

18

4***

M 16

3,05

114,3

115,5

2,92

125

133

134,5

200

18

240

18

8

M 16

4,11

139,7

141

3,90

150

159

160,5

225

20

265

18

8

M 16

5,16

168,3

170

4,78

175

193,7

195,5

255

22

295

18

8

M 16

6,27

200

219,1

221

280

22

320

18

8

M 16

6,91

250

267

269

335

24

375

18

12

M 16

9,53

273

275

9,04

300

323,9

326

395

24

440

22

12

M 20

12,1

350

355,6

358

445

26

490

22

12

M 20

17,0

368

370,5

15,6

400

406,4

409

+1,5

495

28

540

22

16

M 20

20,1

419

422

18,3

450

457,2

460,2

±5

550

28

595

22

16

M 20

25,8

500

508

511

600

30

645

22

20

M 20

30,0

600

609,6

612,6

705

30

755

25

20

M 22

37,9

700

711,2

714,2

810

32

860

25

24

M 22

47,9

800

812,8

815,8

920

34

975

30

24

M 27

62,9

900

914,4

917,4

1020

36

1075

30

24

M 27

74,6

1000

1016

1019

1120

36

1175

30

28

M 27

81,9

*

 The weight is approximate and calculated on base 7.85 Kg/dm3.

**

 Raw hole to be worked again according to the real external diameter of the pipe.

***

 For oil piping the flange should have 8 holes.




Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, C21, P235GH, P245GH, P250GH, ASTM A105

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
