Lapped/Loose Flange

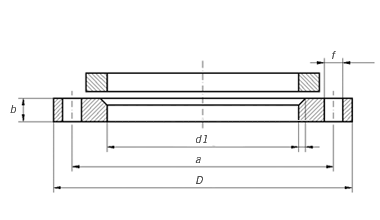

DIN 2642 PN10 LOOSE FLANGE



LAPPED FLANGE










Flange Dimensions & Approximate Masses


Germany standard flange DIN 2642 lapped flange; nominal pressure 10

Lose Flansche Vorschweißbördel Glatte Bunde DIN 2642 Nenndruck 10

Brides tournantes: pression nominale 10

Pipe

Flange

Screws

Weight
(7,85 Kg/dm3)

Rated
Diameter

d1

D

d6

b

k

e

Holes

Thread

d2

Kg

ISO
Series 1

DIN
Series 2

15

-

20

95

22

14

65

3

4

M 12

14

0,689

21,3

-

24

20

-

25

105

28

14

75

3

4

M 12

14

0,806

26,9

-

30

25

-

30

115

33

16

85

4

4

M 12

14

1,11

33,7

-

36

32

-

38

140

42

16

100

4

4

M 16

18

1,64

42,4

-

46

40

-

44,5

150

50

16

110

4

4

M 16

18

1,86

48,3

-

54

50

-

57

165

62

16

125

5

4

M 16

18

2,20

60,3

-

65

65

76,1

-

185

81

16

145

5

4

M 16

18

2,62

80

88,9

-

200

94

18

160

5

8

M 16

18

3,32

100

-

108

220

113

18

180

5

8

M 16

18

3,67

114,3

-

119

125

-

133

250

138

18

210

5

8

M 16

18

4,54

139,7

-

145

150

-

159

285

164

18

240

5

8

M 20

22

5,60

168,3

-

173

200

219,1

-

340

225

20

295

5

8

M 20

22

7,46

250

-

267

395

273

22

350

5

12

M 20

22

10,30

273

-

279

300

323,9

-

445

329

26

400

5

12

M 20

22

14.00

350

355,6

-

505

362

28

460

6

16

M 20

22

18,50

-

368

374

400

406,4

-

565

413

32

515

6

16

M 24

26

25.00

-

419

426

(450)

457

-

615

467

38

565

6

20

M 24

26

30,60

500

508

-

670

517

38

620

6

20

M 24

26

37.00

600

610

-

780

618

44

725

7

20

M 27

30

56,30

700

711

-

895

721

50

840

7

24

M 27

30

80,40

800

813

-

1015

824

56

950

7

24

M 30

33

113,20


NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696




Production Capacity & Purchase Details





1.

Supply Flange Dimension DN15 - DN2000 (1/2" - 80"), Forged Flange.

2.

Material Carbon Steel: RST37.2, C22.8, S235JR, ST37, P235GH, P245GH, P250GH, ASTM A105

3.

Material Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 etc.

4.

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

5.

Monthly Output: 3000 tons per Month.

6.

Delivery Terms: CIF, CFR, FOB, EXW.

7.

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight etc.

8.

Minimum Order Quantity: 1Ton or 100Pcs.

9.

Quality Guarantee: EN10204 3.1 Certificate, Mill Certificate, Third Party Inspection, Free Replacement Service.

10.

Find More Requirements In Flanges Market.
