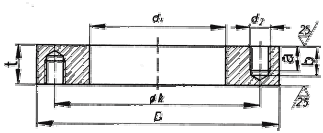

Bulkhead Flange Double NS2540 PN16 FLANGE DATA CHART
Dim. ND | Flange | Threaded hole | Weigth Kg | ||||||
D mm | d1 mm | Øk mm | t mm | No. | Thread | a mm | b mm | ||
65 | 185 | 70 | 145 | 33 | 2x4 | M16 | 19 | 25 | 5,68 |
80 | 200 | 82 | 160 | 33 | 2x8 | M16 | 19 | 25 | 6,21 |
100 | 220 | 107 | 180 | 33 | 2x8 | M16 | 19 | 25 | 6,96 |
125 | 250 | 132 | 210 | 33 | 2x8 | M16 | 19 | 25 | 8,61 |
150 | 285 | 160 | 240 | 38 | 2x8 | M20 | 23 | 29 | 12,0 |
200 | 340 | 210 | 295 | 38 | 2x12 | M20 | 23 | 29 | 15,20 |
250 | 405 | 260 | 355 | 44 | 2x12 | M24 | 28 | 34 | 23,40 |
300 | 460 | 310 | 410 | 44 | 2x12 | M24 | 28 | 34 | 28,60 |
350 | 520 | 350 | 470 | 44 | 2x16 | M24 | 28 | 34 | 36,40 |
400 | 580 | 400 | 525 | 49 | 2x16 | M27 | 31 | 39 | 47,80 |
450 | 640 | 450 | 585 | 49 | 2x20 | M27 | 31 | 39 | 55,70 |
500 | 715 | 500 | 650 | 55 | 2x20 | M27 | 34 | 43 | 79,2 |
|
|
|
|
|
|
|
|
|
|
